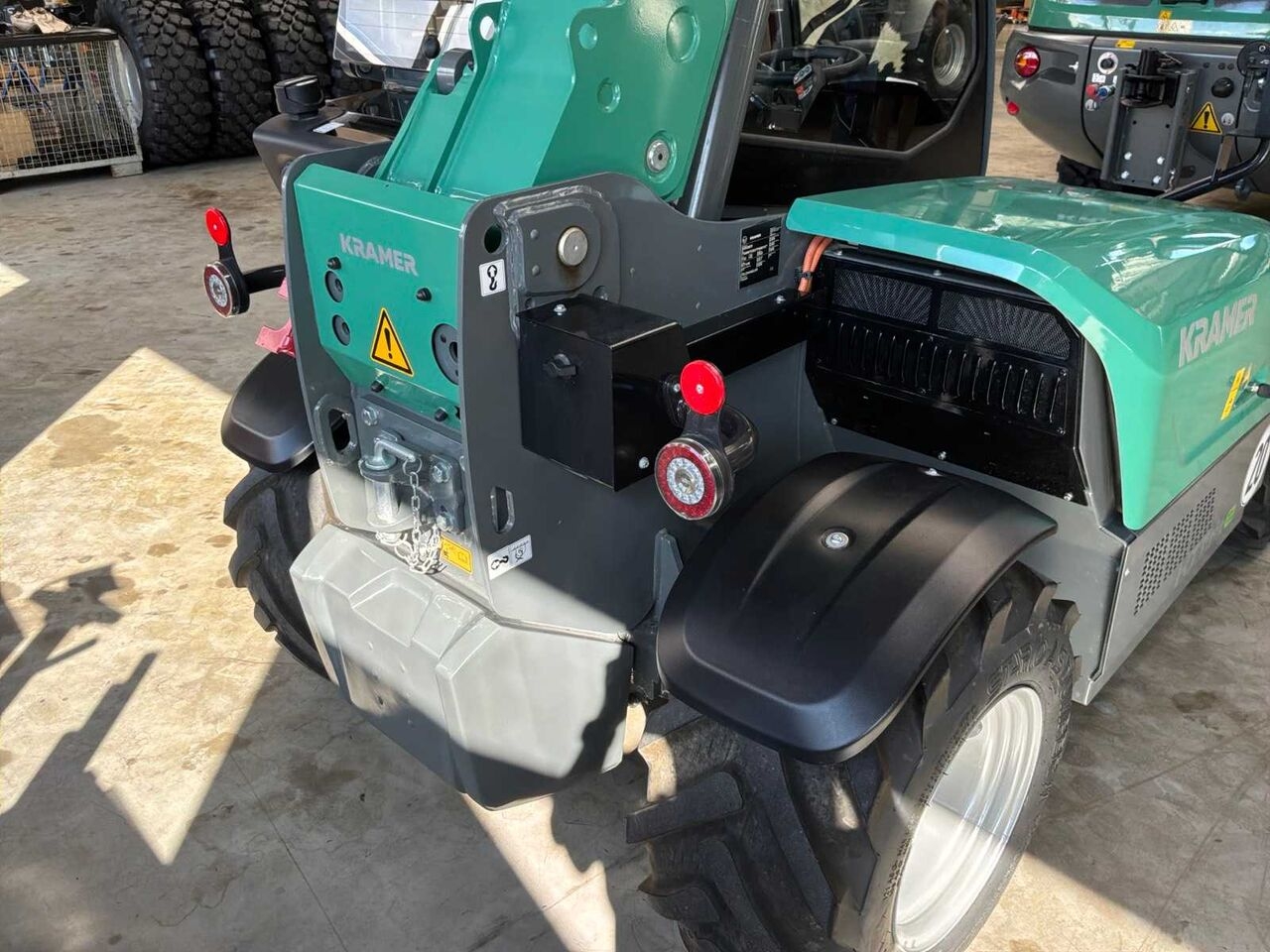

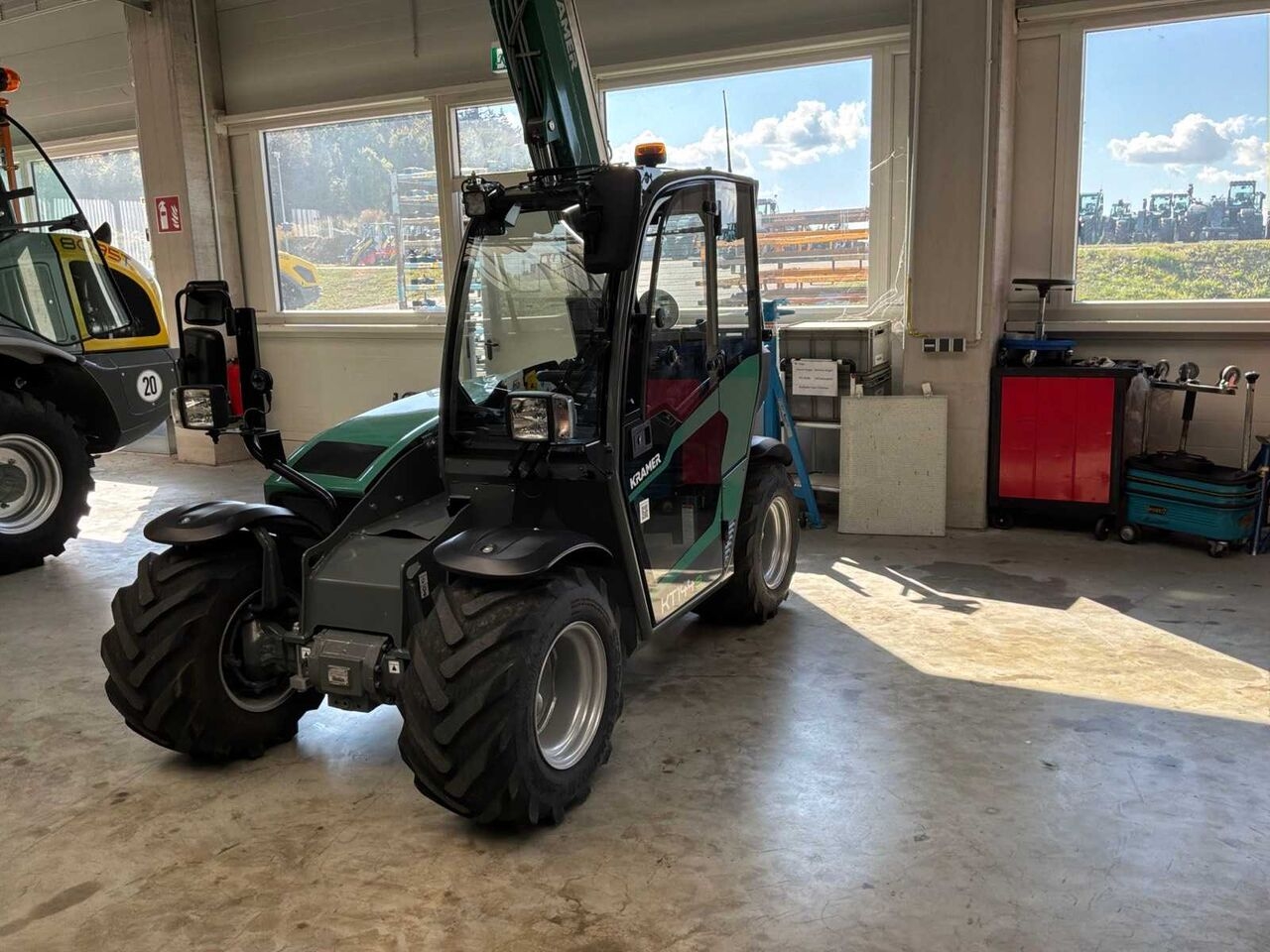

Wheel excavator KRAMER - KT144 E - 2023 - TELEHANDLERS

All-electric, compact telehandler for low-emission and noise-reduced work. Thanks to the electric travel and working hydraulic drive, the machine is particularly suitable for use in halls, on company premises and in noise-sensitive areas. The compact design, high manoeuvrability and the telescopic loading system enable flexible material handling even in limited space. Technical data: - Electric drive: DANA TM4 - Design: SRIPM synchronous reluctance motor with permanent magnet - Travel motor power: 23.2 kW at 3,000 rpm - Max. 30-minute power: 33.1 kW at 3,000 rpm - Electric working hydraulic drive: DANA TM4 - Output working hydraulics: 15.2 kW at 2,500 rpm - Max. power working hydraulics: 21.2 kW - Max. operating speed: 2,800 rpm - Lithium-ion traction battery - Battery voltage: 96 V - Height with cab: approx. 1,995 mm - Overall width: approx. 1,554 mm - Length without attachment: approx. 3,092 mm - Wheelbase: approx. 1,922 mm - Track width: approx. 1,245 mm - Ground clearance: approx. 233 mm - Max. height of bucket pivot point: approx. 4,537 mm - Total working height with standard bucket: approx. 5,547 mm - Max. reach with standard bucket: approx. 2,333 mm - Prospecting depth: approx. 35 mm - Pendulum angle: 7 degrees Scope of delivery: Machine including operating instructions, other existing documentation and charging cable. No attachments, shovels, pallet forks or other accessories are included. All dimensions, performance and weight specifications are approximate and non-binding.
