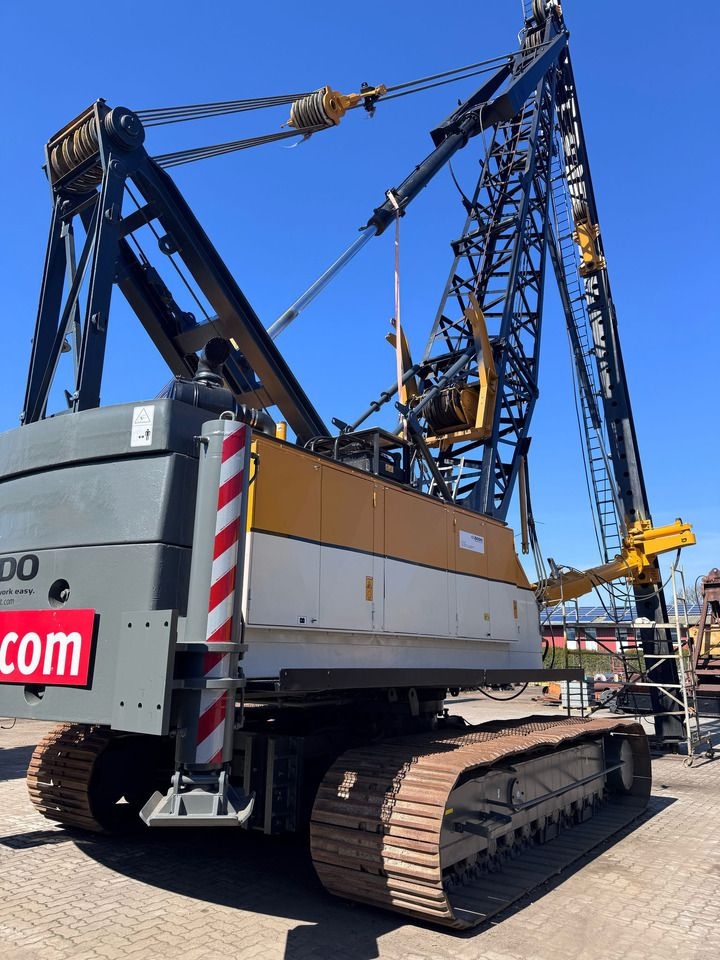

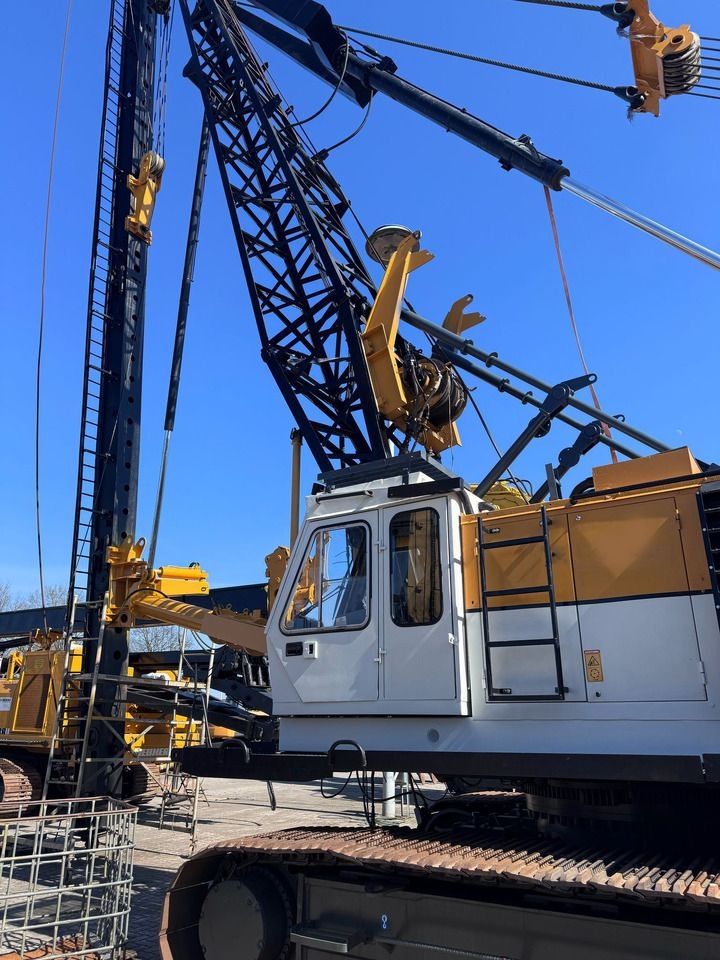

Schürfkübelbagger Weserhütte SW191BSL

Universal cable excavator / dragline SW191 BSL Serial number: 191222 Year of construction: 1994 (complete documentation available) Operating hours: ~15,000 h (complete service history available) Maximum hook height: approx. 41,000 mm Engine: Caterpillar Diesel D 3406 DI-T 6-cylinder water-cooled Power: 250/335 kW/hp (2,100 rpm) Diesel tank: 610 l Oil tank: 390 l (bio-oil) Weight: approx. 80,000 kg Total boom length: 43,000 mm Max. Load capacity of 5,100 kg at an outreach of 16,000 mm Max. Load capacity of 440 kg at a radius of 38,000 mm Trolley length: 5,270 mm Track width: 1,000 mm / Trolleys can be extended hydraulically (transport position working position) Main features Two winch drive variants 1. mechanical winch drive with high efficiency for diaphragm wall grab, drill grab and drill bit use, dragline bucket use, etc. 2. hydrostatic winch drive - switchable at any time - infinitely variable - and for force-locked load lowering 3. reinforced main winches with large-dimensioned disk clutches and external hand brakes Dimensions of ready-to-use appliance: (upper carriage only) Width: 4,600 mm Length: 6,975 mm Height: 5,870 mm Transport dimensions: Width: 3,700 mm Length: 7,765 mm Height: 3,510 mm Device completely overhauled! Looks like new! Condition of undercarriage: Drive/chain/rollers/drives: 80-90%
